What Are Geophones?

The Tool That Could Unlock the Potential of Geothermal Energy

May 26, 2022 | By Lindsey McGuirk | Contact media relations
Share

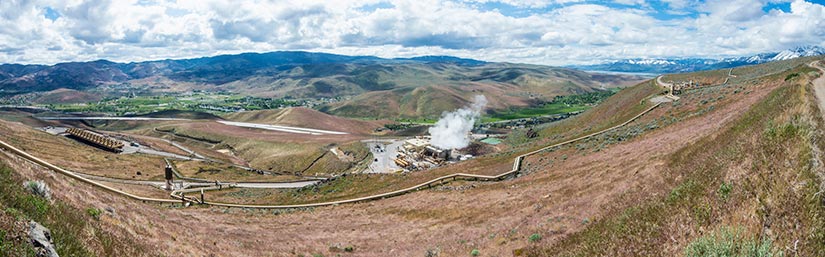

Steam coming off of a geothermal plant in a valley.
A geothermal plant in Washoe County, Nevada. Photo by Dennis Schroeder, NREL

Deploying 60 gigawatts of geothermal electricity would be enough to provide clean, reliable power for 129 million American homes and businesses. A key factor to unlocking that amount of always-available geothermal energy could be through innovation in subsurface seismic sensors, or geophones.

A Hot Research Field

Geothermal energy is renewable, sustainable, and carbon free.

Clean energy can be generated by using geothermal heat from the core of the Earth, which is as hot as the surface of the sun. As heat radiates upward, it gradually cools to roughly 600°F at around two miles under our feet. Accessing that heat though drilling in viable areas releases very hot, salty water (brine) and steam that rises to the surface. The steam then spins turbines that produce electricity. The brine is injected back into the ground, where it is reheated by the Earth.

Accessing geothermal resources for energy production requires brine to flow through openings in rocks. This means economically viable production needs high temperatures at accessible drilling depths, plus the presence of permeable fractures in the subsurface. When hot rocks in the subsurface are not sufficiently permeable, a technique called enhanced geothermal systems (EGS) can help access the heat contained in the hot rocks by creating new fractures to carry increased amounts of geothermal fluids.

EGS is an ongoing research area that involves the injection of water into the subsurface to create or reopen existing fractures. To perform successful stimulations and ultimately develop efficient EGS reservoirs, researchers need to understand subsurface conditions; geophones allow them to do so.

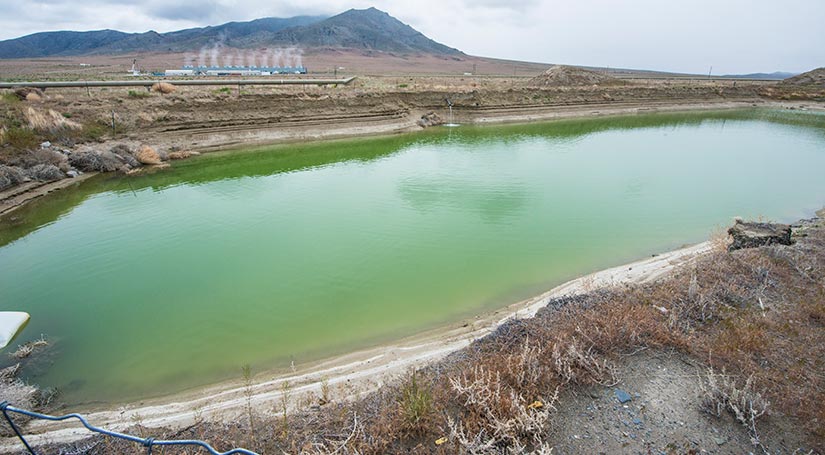

Geothermal reservoir beside plant emitting steam.
The Blue Mountain Geothermal Plant in Humboldt County, Nevada. Photo by Dennis Schroeder, NREL

What Are Geophones?

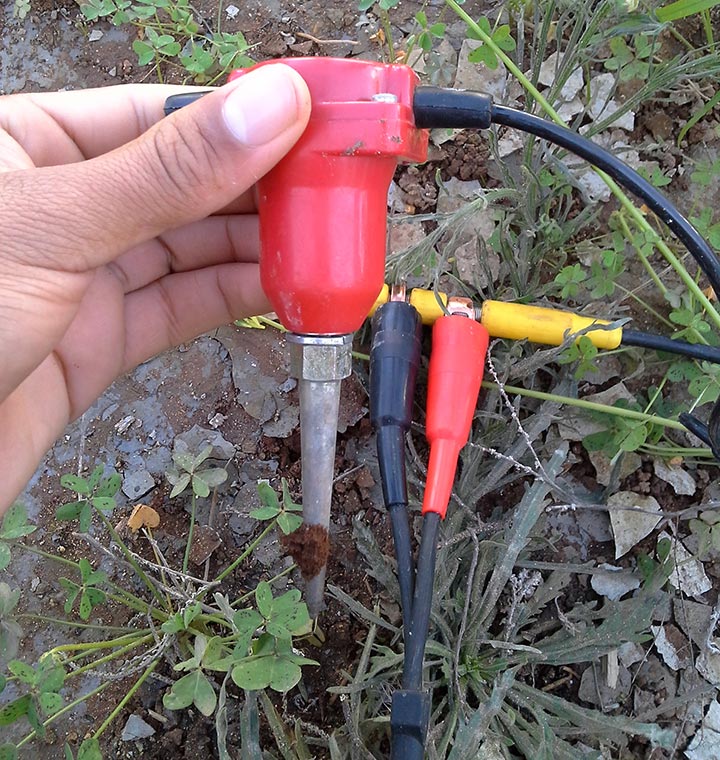

Person holding palm-size tool.
A traditional geophone.

The word geophone quite literally means "earth" "sound," which is what the devices detect—acoustic vibrations within the Earth.

The sensors collect rich data sets that provide information about subsurface geothermal reservoirs and how the reservoir rock is evolving before, during, and after EGS stimulations to ensure safe geothermal operations. Geophones can be deployed at the surface or in wells that place them closer to geothermal reservoirs where they can collect more detailed data.

Traditional seismic monitoring tools cannot withstand the extreme temperatures, high rock strengths, and corrosive brine materials in geothermal environments. Plus, due to the relatively small size of the current U.S. geothermal market, the manufacturing of components and tools for geothermal environments can be prohibitively expensive.

"Fast-tracking the development of technology related to EGS could significantly expand access to geothermal energy across the country," said Ian Warren, senior geoscientist at the National Renewable Energy Laboratory. "Innovation in subsurface geophones to enable collection of detailed seismic data within and adjacent to high-temperature rocks deep below ground will be a huge advance for developers creating EGS reservoirs."

The American-Made Geothermal Geophone Prize

Graphic showing the prize logo.
The American-Made Geothermal Geophone Prize is designed to address the challenges of operating seismic sensors in geothermal environments.

To enable the development of 60 gigawatts of projected geothermal electricity capacity by 2050, the U.S. Department of Energy Geothermal Technologies Office is focused on advancing EGS and the tools required for safe, effective, and economically viable deployment. The $3.65 million American-Made Geothermal Geophone Prize is designed to address the challenges of operating seismic sensors in geothermal environments.

The Geophone Prize consists of three phases that will fast-track efforts to design, test, and fabricate advanced functional seismometer prototypes. Each stage will include a contest period when competitors work to rapidly advance their solutions with the support of the American-Made Network.

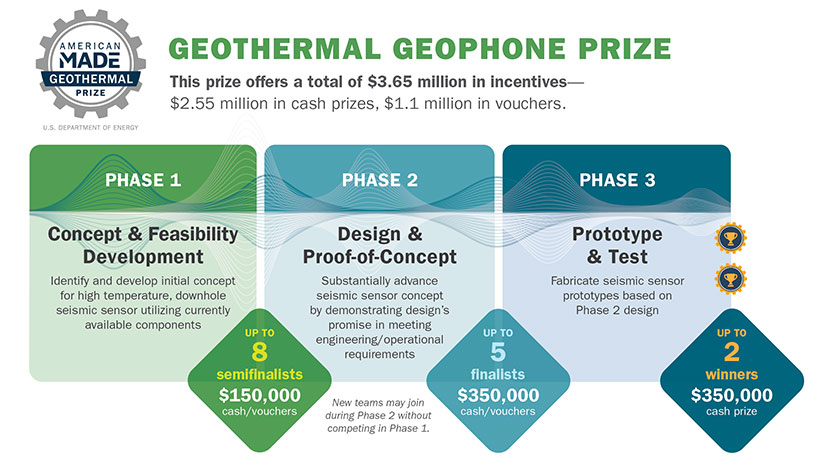

Infographic depicting the three phases of the prize.
The Geothermal Geophone Prize is a $3.65 million challenge consisting of three phases that will fast-track efforts to design, test, and fabricate advanced functional seismometer prototypes.

The prize is open to private organizations (for-profits and nonprofits), nonfederal government entities (such as states, counties, tribes, and municipalities), academic institutions, and individuals that meet all eligibility requirements.

For more information, visit AmericanMadeChallenges.org.
