Spatially Resolved Characterization

For high-throughput experiments, NREL has spatially resolved measurement capabilities, also known as mapping capabilities, and specialized characterization instruments.

Our large number of single-point, specialized characterization instruments allows us to study in more detail the most interesting points on the combinatorial libraries.

Chemical Composition Mapping

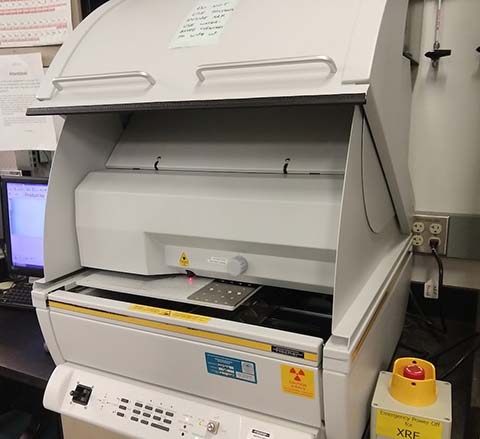

Method: X-ray fluorescence (XRF)

Instrument: Fisher XDV XRF

Measures: Composition and thickness

Samples: <12" square

Resolution: 0.3-3 mm

Time per point: 3-5 min

Features: Ti lightest element

Photo of Fisher XDV XRF instrument

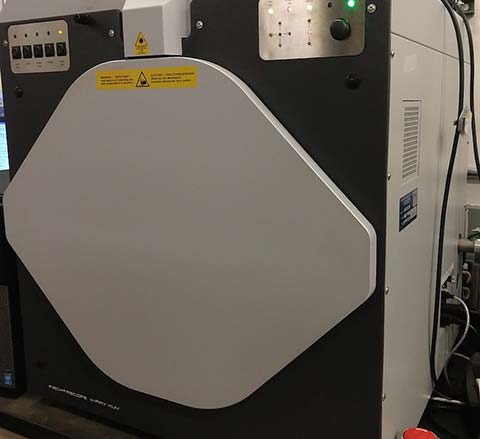

Method: X-ray fluorescence (XRF)

Instrument: Fisher XUV XRF

Measures: Composition and thickness

Samples: <6" square

Resolution: 0.3-3 mm

Time per point: 3-5 min

Features: >Al, vacuum

Photo of Fisher XUV XRF instrument

Method: X-ray fluorescence (XRF)

Instrument: Bruker Tornado XRF

Measures: Composition and thickness

Samples: <6" square

Resolution: 0.01-3 mm

Time per point: 3-5 min

Features: >Al, vacuum, micro

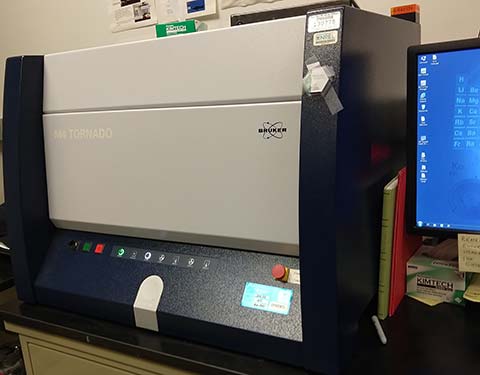

Photo of Bruker Tornado XRF instrument

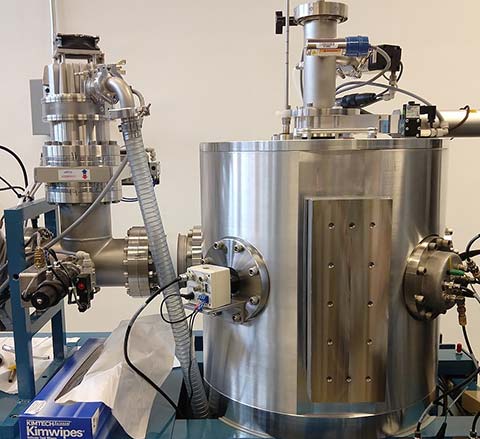

Method: Rutherford back scattering (RBS)

Instrument: National Electrostatics Corp RBS

Measures: Composition and thickness

Samples: <2" square

Resolution: 1 mm

Time per point: 30 min

Features: >N, vacuum

Photo of National Electrostatics Corp RBS instrument

Method: Photoemission Spectroscopy

Instrument: Kratos Nova XPS

Measures: Fermi level and work function

Samples: <6" square

Resolution: 1 mm

Time per point: 30 min

Features: Vacuum transfer

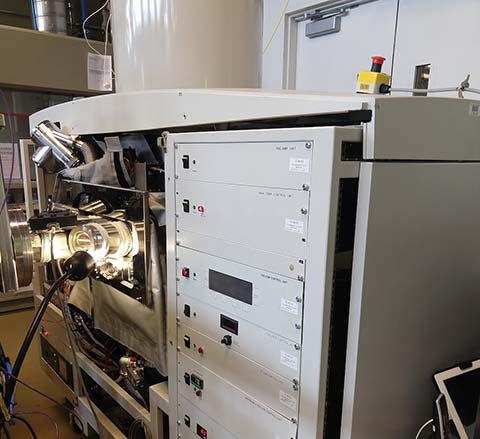

Photo of Kratos Nova XPS instrument

Crystal Structure Mapping

Method: X-ray diffraction (XRD)

Instrument: Bruker D8 Discover XRD

Measures: Structure and phase content

Samples: <4" square

Resolution: 1-2 mm

Time per point: 3-5 min

Features: 2D detector

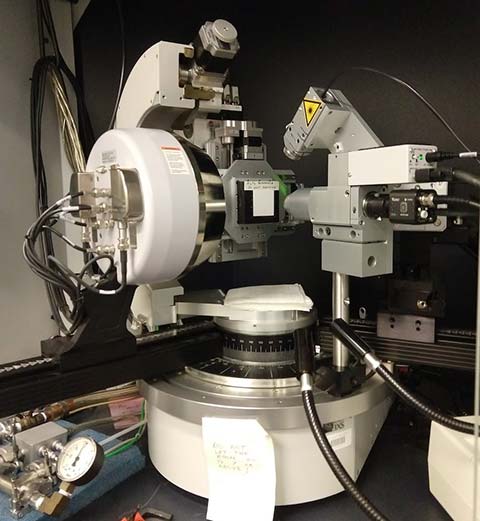

Photo of Bruker D8 Discover XRD instrument

Method: Raman and photoluminescence

Instrument: Renishaw in Via Raman Microscope

Measures: Vibration modes and phase ID

Samples: <2" square

Resolution: 1 um

Time per point: 5 min

Features: Multiple lasers

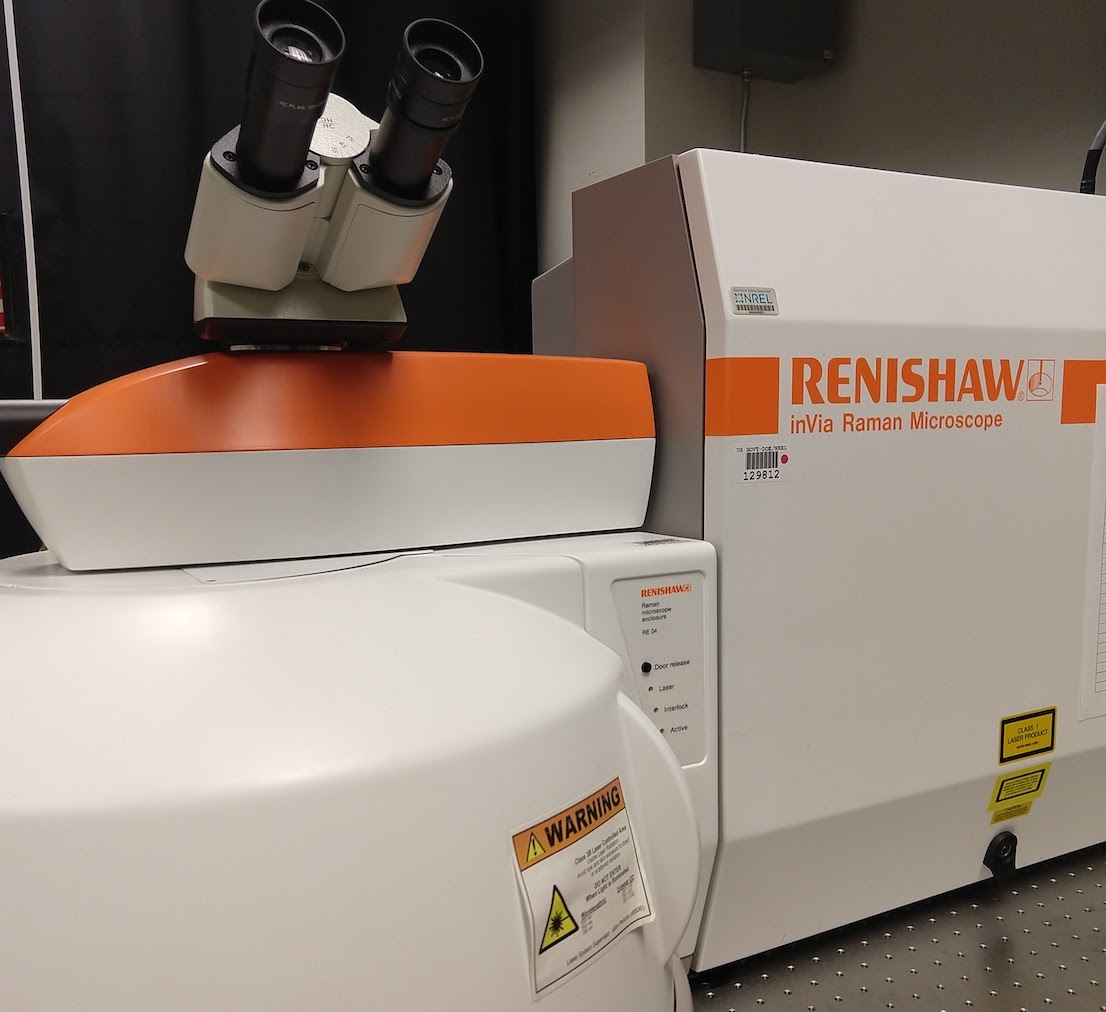

Photo of Renishaw in Via Raman Microscope

Optical Property Mapping

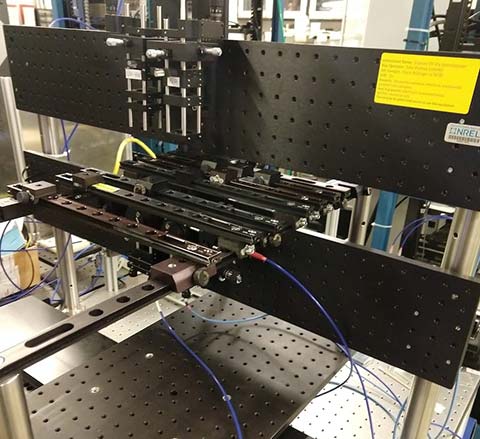

Method: Optical spectroscopy

Instrument: Custom with Ocean Optics Spectrometer

Measures: Bandgap and absorption coefficient

Samples: <6" square

Resolution: 1 mm

Time per point: 3 sec

Features: Diffuse and specular ultraviolet visible spectroscopy (UV-Vis-NIR)

Photo of Custom with Ocean Optics Spectrometer

Method: Spectroscopic ellipsometry

Instrument: J.A. Woollam Ellipsometer

Measures: Thickness and refractive index

Samples: <6" square

Resolution: 1 mm

Time per point: 10 sec

Features: Variable angle and UV-VIS-NIR

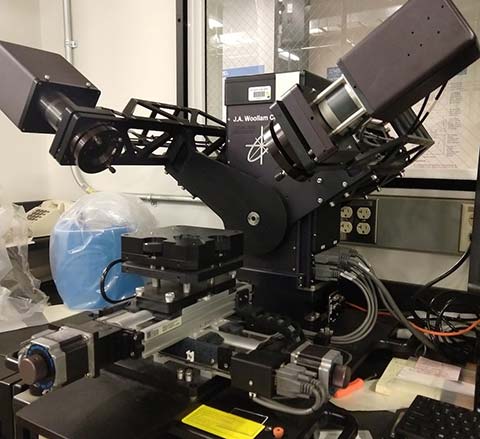

Photo of J.A. Woollam Ellipsometer

Method: Fourier Transform infrared spectroscopy (FTIR)

Instrument: Thermo Scientific FTIR

Measures: Plasmons and vibrations

Samples: <6" square

Resolution: 3 mm

Time per point: 5 sec

Features: 1.8-25 um

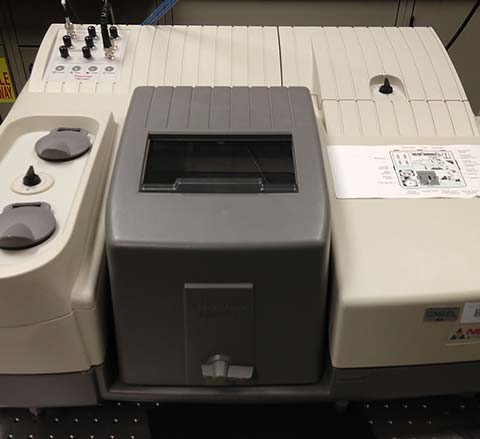

Photo of Thermo Scientific FTIR instrument

Method: Colorimetry

Instrument: Epson Perfection V850 photo scanner

Measures: Film images and color

Samples: <8" square

Resolution: 1 um

Time per point: <1 sec

Features: Custom holder and software

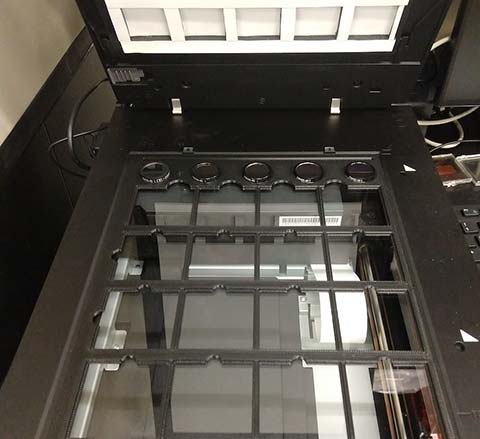

Photo of Epson Perfection V850 photo scanner

Electrical Property Mapping

Method: 4-point probe

Instrument: Custom 4-point probe

Measures: sheet resistance

Samples: 2" square

Resolution: 3 mm

Time per point: 15 sec

Features: Heaters for measuring Seebeck

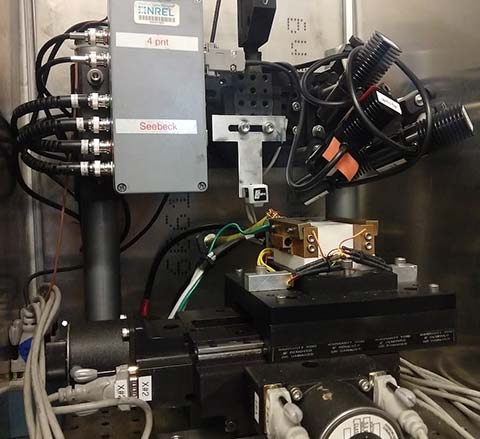

Photo of Custom 4-point probe

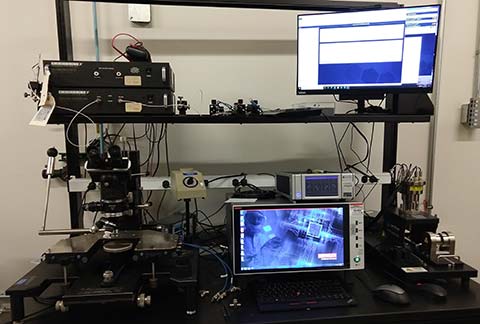

Method: Two-terminal measurements

Instrument: Custom JV/CV/IS

Measures: Resistance, capacitance, and impedance

Samples: <6" square

Resolution: 1 mm

Time per point: 5-30 sec

Features: Solar simulator and T/ambient control

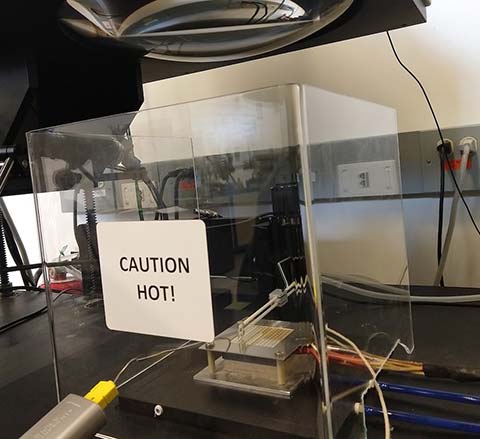

Photo of Custom JV/CV/IS instrument

Method: Three-terminal measurements

Instrument: Keithley 4200

Measures: Transistor and capacitor characteristics

Samples: <3" square

Resolution: 1 mm

Time per point: 10 min

Features: Microscope probe station

Photo of Keithley 4200 instrument

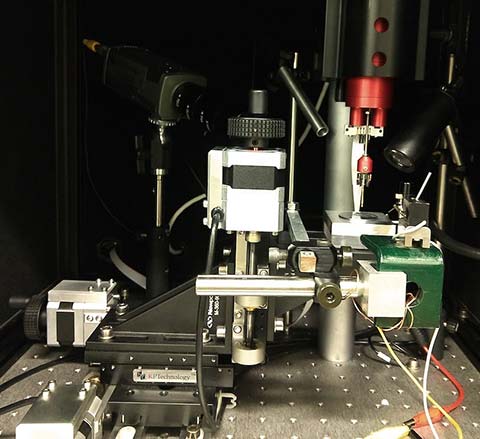

Method: Kelvin probe measurement

Instrument: KP Technology

Measures: Work function and surface photovoltage

Samples: <6" square

Resolution: 1 mm

Time per point: 10 sec

Features: Variable angle and UV-ViS-NIR

Photo of KP Technology instrument

Surface Property Mapping

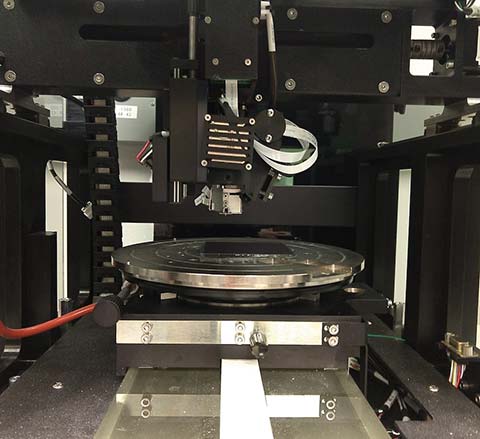

Method: Thickness profilometry

Instrument: Dektak Profilometer

Measures: Film thickness

Samples: <6" round

Resolution: 1 um

Time per point: 30 sec

Features: Holders and analysis software for full wafer mapping

Photo of Dektak Profilometer

Method: Scanning droplet cell (SDC) mapping

Instrument: Custom SDC instrument

Measures: Cyclic voltammetry and photocurrent

Samples: <2" square

Resolution: 2 mm

Time per point: 30 sec

Features: Corrosion testing and LED-based light

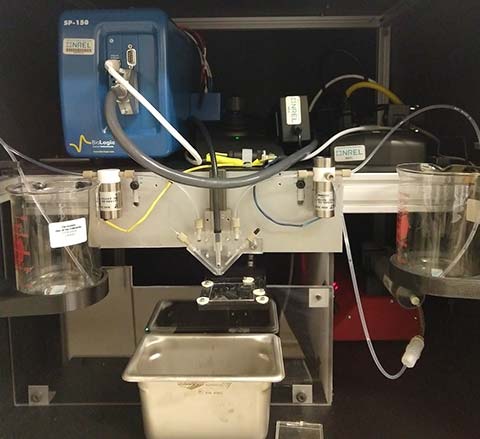

Photo of Custom SDC instrument

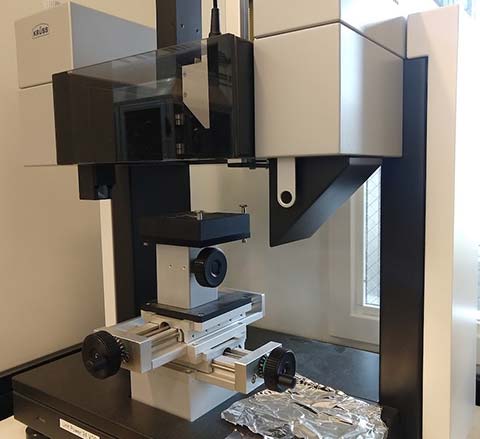

Method: Contact angle measurement

Instrument: Kruss-Scientific

Measures: Contact angle

Samples: <6" square

Resolution: 3 mm

Time per point: 15 sec

Features: Custom solutions

Photo of Kruss-Scientific instrument

Method: Atomic force microscopy (AFM)

Instrument: Bruker AFM

Measures: Root mean square roughness and grain size

Samples: <6" square

Resolution: 1 nm

Time per point: 30 min

Features: Vacuum transfer

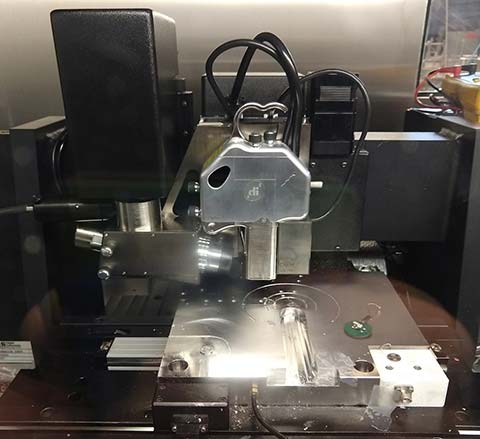

Photo of Bruker AFM instrument
