Reaching 50 by 30: Seminal NREL Study Identifies National Charging Needs to Support Growth in EV Sales through 2030

---

Nearly 70 years ago, the United States began construction on the interstate highway system, setting in motion an effort that has been called the greatest public works project in American history. Now, the country's next great public works project is underway: an electric vehicle (EV) charging network that will reach the farthest corners of the nation, helping to make convenient, reliable, and affordable charging a reality for all Americans.

But while plans for the interstate highway system began with a booklet of paper maps, plans for the national EV charging network are utilizing data models and high-powered computers to draw the contours of the nation's infrastructure needs. These plans will be shaped by a seminal study from the National Renewable Energy Laboratory (NREL), which has been at the forefront of assessing EV charging needs and developing state-of-the-art analytical tools for over a decade.

In the study, the laboratory estimated the number, type, location, and cost of the chargers needed to create a comprehensive network of EV charging infrastructure.

NREL Analysis Supports U.S. Administration's Clean Energy Goals

The study, titled "50x30: Estimating U.S. Charging Needs Toward 50% Light-Duty Electric Vehicle Sales by 2030," provides the quantitative analysis needed to support ambitious federal clean energy goals: namely, the Biden-Harris administration's goal for EVs to make up at least 50% of new car sales by 2030. Between federal goals and accelerating consumer interest in electric transportation, researchers anticipate the United States could see at least 33 million light-duty EVs on the road by 2030. A reliable network made up of various types of charging solutions will be needed to support them.

The 50x30 study was created in collaboration with the Joint Office of Energy and Transportation (Joint Office) and the U.S. Department of Energy's Vehicle Technologies Office. In turn, it will support the Joint Office's complementary work to deploy a network of electric vehicle chargers, zero-emission fueling infrastructure, and zero-emission transit and school buses nationwide. As the Joint Office works with all 50 states, Washington, D.C., and Puerto Rico to develop state and community-level plans for EV charging infrastructure, the study's findings will fuel the office's vision of building a future where "everyone can ride and drive electric."

"50x30 ties together two of the administration's priorities: building a national EV charging network and working toward the 2030 goal for half of all new car sales to be battery-electric vehicles," said Gabe Klein, executive director of the Joint Office. "It's a framework for what is needed nationally, in terms of the types of charging required, their number, and where those chargers should go."

To Build an EV Network, Start With Data

Estimating an entire nation's EV charging infrastructure needs required NREL researchers to consider a vast array of data—from projecting drivers’ typical charging needs and EV adoption rates seven years into the future, to examining how different climates across the United States might affect energy requirements. The result is a framework with a never-before-seen level of detail.

NREL's Eric Wood, a senior EV charging infrastructure researcher, led the team who built the report's data models using years of the laboratory's national EV charging analyses and several proprietary tools.

"The 50x30 framework is broad in scope, and it considers millions of EVs on the road at the national level," Wood said. "But what makes the framework novel is the ability to create infrastructure estimates for specific locations using detailed transportation data. This enabled the team to answer questions like: How will EV adoption in neighboring states impact the demand for public fast charging along highway corridors in my area? And how might that out-of-state demand compare to charging needs from residents in my area?"

"Together," Wood continued, "the 50x30 data create a snapshot of what we think an EV charging network would need to look like by 2030 to support roughly 33 million passenger EVs."

That "snapshot" captures the many ways Americans travel—from commuting, running errands, using a ride-hailing app, and taking long road trips—and estimates the energy demands for each.

For instance:

• Using EVI-Pro, Wood and the NREL team calculated the typical daily charging needs for running errands and commuting. The analysis considered energy demands for those who do and do not have access to convenient home charging.
• Using EVI-RoadTrip, the researchers projected the charging infrastructure needed to make long-distance travel along national highways feasible.
• Using EVI-OnDemand, the researchers estimated the charging infrastructure needed for ride-hailing fleets like Uber and Lyft to electrify their operations.
• Using the Transportation Energy & Mobility Pathway Options (TEMPO) model, the team was able to estimate the number of EVs that might be on the road if the United States meets the federal goal of 50% new EV sales by 2030.

And rather than creating a one-size-fits-all approach to charging, the study considers the realities of life across the United States: differences in weather, housing types, travel behaviors, and preferences in charging options.

For instance, EV drivers in very hot climates, like Arizona, and in very cold climates, like North Dakota, may both see their cars' charging speeds and range impacted by climate. Drivers living in areas with more EVs, like Southern California, may have to grapple with busier charging stations. The researchers even factor in bad charging etiquette: the slowdowns that occur at charging stations when drivers neglect to unplug and move a fully charged car.

This detailed region-specific analysis, Wood said, is now available to states and communities, who can break out the estimates for their area and use the data to guide local investments into EV charging infrastructure.

"City-to-city differences in climate, travel patterns, housing, charging preferences, and demographics aren't considerations captured in other infrastructure assessments that we've seen," Wood said. "We believe that making that data publicly available, and having it customized to each of these regions, will prove pivotal as cities work to determine their network needs."

Key Findings for the Future EV Network

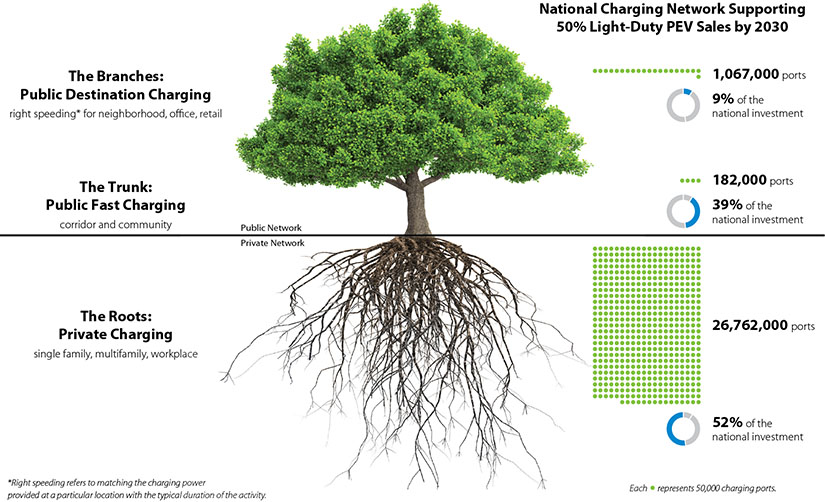

Because EV drivers strongly prefer the convenience and affordability of charging at home or work, the 50x30 report finds that private chargers will form the core of the national charging network needed to support 50% new EV sales by 2030. But private chargers will need to be complemented with reliable public chargers.

Specifically, NREL researchers project the national charging network will require:

• 182,000 public direct-current fast chargers to enable long-distance travel, support electric ride-hailing services, and make EV ownership feasible for those who lack access to residential charging.
• 1 million public Level 2 chargers in high-density neighborhoods, office buildings, and retail outlets to further enhance EV driving experience and generate charging-related economic opportunity.
• 8 million private Level 1 and Level 2 chargers at single-family homes, multifamily properties, and workplaces to accommodate the bulk of EV charging needs.

According to Wood, one of the study's key takeaways is an understanding of what it will take to build the EV charging network of the future.

"In just the past few years, we have seen historic investments into national EV infrastructure, including the National Electric Vehicle Infrastructure Formula Program and the Charging and Fueling Infrastructure Discretionary Grant Program, both of which are supported by the Joint Office," Wood said. "At the same time, the 50x30 study reinforces the notion that we're going to need to continue to work together—both public and private entities—to build the national network that we'll need for 2030 and beyond.

"The great news is that now we have detailed estimates of what infrastructure will be needed," Wood continued. "American drivers' interest in electric vehicles is accelerating year over year, and we're already seeing the market respond with new investments to meet that rising demand. Key players in this space—from automakers, charging providers, local governments, and utility companies to retailers, real estate developers, and private firms—can all see this as motivation to keep going, with insights from 50x30 to help them target the needed infrastructure."

Estimates Change, but Impact Lives On

Of course, the national charging landscape has changed dramatically, even since Wood's team published its first national EV charging analysis in 2017. Depending on variables as diverse as the changing cost of EVs, technology adoption curves, and even Americans' preference for large cars, the estimates of the 50x30 study will likely change.

But according to Klein, while estimates change, impact lives on.

"The 50x30 study is a crystal ball reflecting a moment in time," Klein said. "You might look into the crystal ball a year from now and see something slightly different. But the work of this study is generated by such a sophisticated set of models that it will continue to be relevant. It can be updated with future assumptions and can track aspects of the charging network and of infrastructure as they evolve.

"The fundamental contributions that Eric and the team at NREL have made will outlive the study," Klein continued. "They will likely go on to shape policy and programs for many years to come."
